Description

GF5-67T

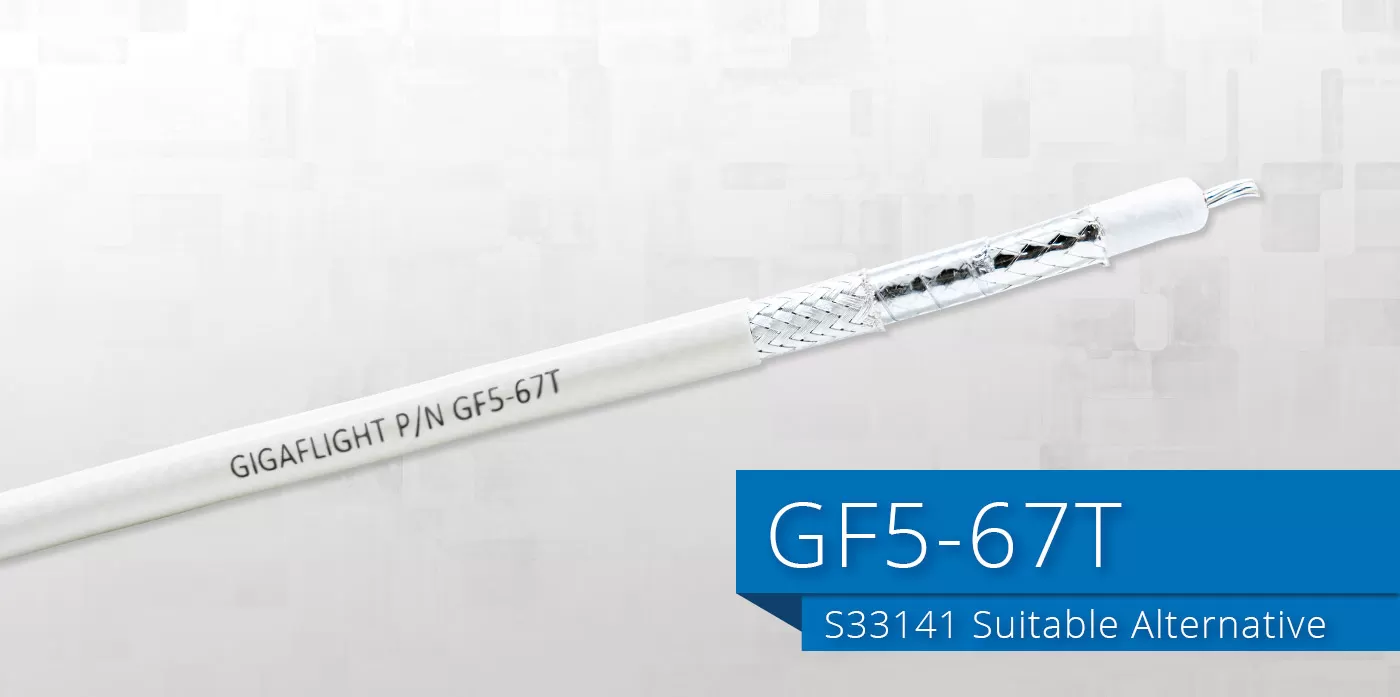

PIC S33141 Identical Alternative: GF5-67T Low Loss High Performance Coax

PIC S33141 is a low loss 50 ohm coax cable designed for use in commercial and defense aviation systems. GIGAFLIGHT’s GF5-67T is a suitable alternative to S33141. It has similar materials, electrical performance, size, weight, connector usage and applications.

S33141 vs GF5-67T

The main advantage over the S33141 is GIGAFLIGHT’s GF5-67T uses a white, laser-markable fluoropolymer jacket. This jacket yields a 14% weight reduction and eliminates the need for applying heat shrink labels for wire marking. The GF5-67T also has an 8.5% smaller outer diameter and an 11% tighter minimum bend radius than the S33141. While the GF5-67T is superior to S33141, it far outshines the standard RG393 and RG214.

With the lighter, more flexible wire, you will save time and money on everything from shipping, storage, installation, and labor costs to fuel and weight savings from every use and application.

Download the PDF to see the cable’s properties in detail.

Common applications for alternative PIC S33141:

• Gogo Avance
• Air to Ground Network Radios (AGNR)
• BFT 3
• GPS
• TCAS
• Mode-S
• SATCOM
