GF428E-QUAD
Description
GF428E-QUAD
GIVING YOU OPTIONS
The GF428E-QUAD is a 28 AWG Quadrax designed as a 100Base-T physical layer for Ethernet. While being lighter and having an overall smaller outer diameter, the GF428E-QUAD exceeds Category 5e requirements and is a suitable alternative to PIC’s E51428.
GIGAFLIGHT provides tested Quadrax assemblies per the customers specification and, in many cases, built with Quadrax contacts supplied by the customer.
Additional Jacket Colors for Special Applications

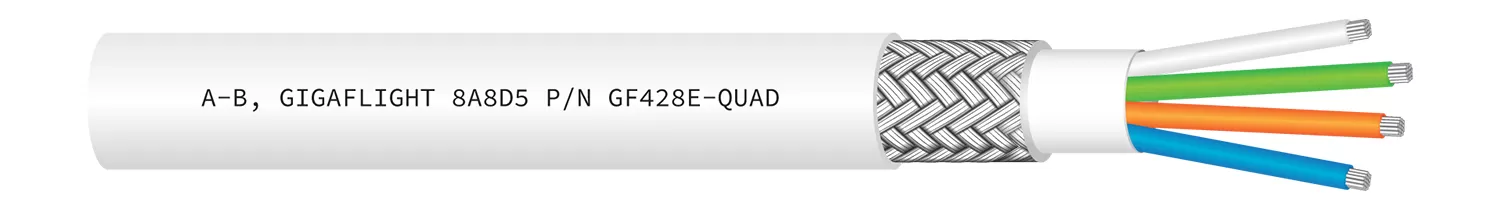

- The jacket color depicted in the cable image above is a stock item. If your project requires a color for a specific application, GIGAFLIGHT can do that. Please Contact us for availability.
COMPARISON TABLE
| DESCRIPTION | GIGAFLIGHT | CARLISLE | PIC |
| Cable Group A | GF5-71T | 311501 | S67163 |
| Cable Group B | GF5-56T | 311201 | S55122 |
| Cable Group C | GF5-124T | 311901 | S44193 |
| 75 Ω Video Coax | GF7-303D* | V76261 | – |
| 75 Ω Video Coax | GF7-303D** | V73263, V75268 | 442501 |
| 75 Ω Video Triax | GF7-TX303D* | L7626TX | – |
| 24 AWG Data Pair USB 2.0 | GF90-24USB2* | USB2422 | – |
| 24 AWG Quadrax Ethernet | GF100-24QUAD* | E51424 | NF24Q100-01, 422404 |
| 24 AWG 100 Ω Twinax | GF100-24TWIN-1* | E10224 | NF24T100 |
| 22 AWG 100 Ω Twinax | GF10022TWIN* | E10222 | – |
| 22 AWG 70 Ω ARINC 429 | GF70-22A429* | D60222 | – |
| 24 AWG CAT 6A 10Gb Ethernet | GF100-24CAT6A** | E6A6824, E6A0824, E6A3824 |
MX10G-24 |
| 24 AWG 1553 DataBus Laser Mark Jacket | GF77-241553** | G771553 | – |
| 24 AWG CAT5 Ethernet | GF100T-24CAT5** | E10424 | 392404 |
| 24 AWG 120 Ω CAN Bus | GF120-24CANB-1** | – | CAN24TST120 (CIT) |
